Solar PANELS
Efficient flat-plate solar collectors
Thermosolar – one of the oldest solar producers and the world’s only manufacturer of highly efficient vacuum flat-plate collectors – has more than 50 years of experience in the development and application of the latest solar collector technology. A biomass boiler from Hargassner and a solar collector from Thermosolar are therefore a perfect combination for efficient heating – eco-friendly and 100 % CO2-neutral. Not only can this powerful duo reduce heating costs by up to 30 %, both systems are also heavily subsidised.
Solar collectors provide thermal heat for households by absorbing solar energy and converting the energy into heat. The heat is then discharged into an accumulator where it is used to heat water or to support the heating system in general. The solar arrays are always intended to be an additional part of the installation next to an already existing heating system. A roof pointing to the south is advantageous in order to be able to store as much solar radiation as possible.

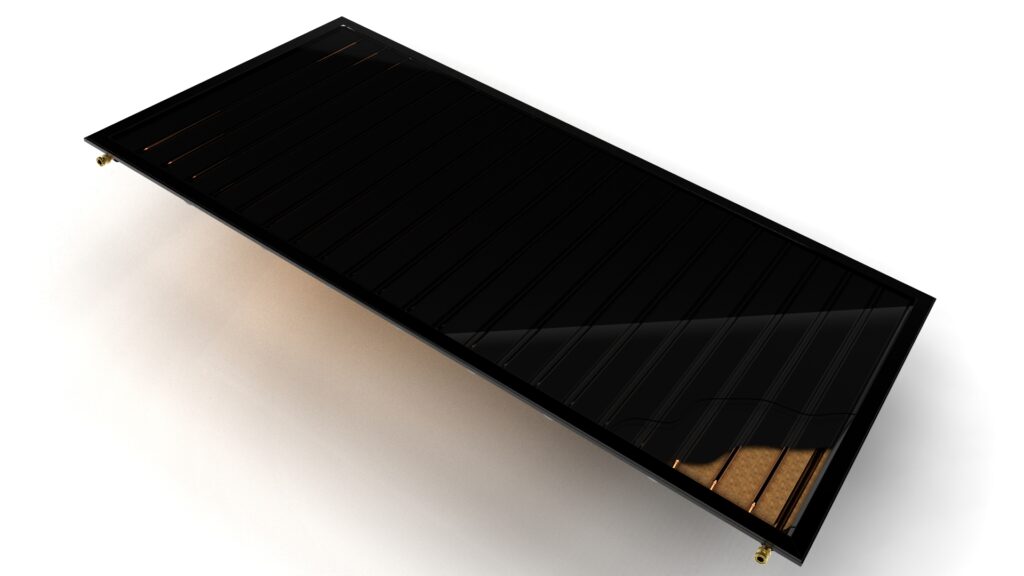

Solar panel TS 300
The solar flat-plate panel for detached houses and apartment buildings
The TS 300 is a thermal high-performance flat-plate panel for vertical installation of solar panels.
Where high performance standards are required, the TS 300 is the most cost-effective solution. Excellent manufacturing combined with the latest solar technology makes this panel unique. Thanks to its outstanding performance, this panel is particularly suitable for heating domestic water and supporting heating systems. In combination with a modern wood log boiler, a pellet boiler or with a combi boiler, the highest possible efficiency is achieved.
The panel consists of a compact deep-drawn trough made from an aluminium-magnesium alloy that is 0.8mm thick and attached to a sheet of safety glass by a frame of anodised aluminium. The full-surface absorber is coated with a highly selected aluminium oxide alloy and connected to the internal meandering pipe using a special forming technology. The solderless flange connections ensure the absorber is able to link up to the solar circuit quickly and safely. Up to 10 of these collectors can be connected together consecutively.
The high-performance flat-plate panel with vacuum insulation
The TS 400 is a thermal vacuum flat-plate panel for the vertical installation of a highly efficient thermal solar system. Thanks to its impressive performance, the TS 400 vacuum flat-plate panel is particularly suitable for process heat, special heat pump systems and supporting heating systems. The vacuum insulation technology means that condensate does not appear in the panel even at low temperatures.
The TS 400 panel consists of compact deep-drawn trough made from an aluminium-magnesium alloy that is 1.3 mm thick and attached to a sheet of safety glass by a frame of anodised aluminium. The full-surface absorber is coated with a highly selective AlOx alloy and connected to the internal meander piping by a special forming technique. The solderless flange connections guarantee a quick and secure connection to the solar circuit and the vacuum line. By filling the evacuated collector with krypton gas, performance is increased by 10 %. As this panel is completely hermetically sealed, it is well-suited to areas with high levels of air pollution and maritime climate. Up to 10 of these collectors can be connected together consecutively.
